Taïga EXP 3 | All Terrain Bike (Flat bar)
*Pre-sales are underway. Deliveries will begin at the end of April.
Carrying forward the DNA of the Taïga EXP, this third generation is designed for riders who want to cover long distances across all types of terrain. Its versatile geometry promotes a comfortable and efficient riding position, whether for bikepacking, off-road ultra races, or all-terrain rides.
Built from Reynolds 725 steel, the frame uses butted tubing to reduce weight while maximizing strength. Each frame size receives a size-specific tube selection, ensuring optimal performance while preserving the lively ride quality and comfort that steel is known for.
The Taïga EXP 3 is now offered with a steel or carbon fork, each designed with geometry adjusted to remain compatible with a 120 mm suspension setup.
A durable and extremely versatile adventure bike, the Taïga EXP 3 is a true off-road travel platform, designed to go far and last long.
Sizing guide - taiga EXP 3
Riding with a well-fitted bike is key to comfort, performance and fun! Contact us for any technical questions you may have. Complete geometry chart can be found on this page.
| SMALL | MEDIUM | MEDIUM-LARGE | LARGE | |
|---|---|---|---|---|
| APPROXIMATIVE CYCLIST HEIGHT | 5’3’’ – 5’7’’ | 5’6’’ – 5’10’’ | 5’10’’ – 6’1’’ | 6’0’’ – 6’3’’ |
Product information
We're proud to offer products for which every detail has been thought through and validated.
We offer a warranty that covers the owner of a Panorama bike for life. First of all, should a manufacturing issue arise, this defect will typically surface quickly in the life of the bike. That's why we offer a full 5-year warranty against manufacturing defects. Then, if an accident, fall or impact causes damage to the frame, you'll be covered by our lifetime crash replacement policy. Simply return the frame to us, and we'll assess whether repair is possible or replacement is necessary, at the lowest possible cost.
Return the bike after 10 days of testing if anything is not up to your expectations. Your satisfaction (and especially your fun outdoor) is at the top of our priorities. See the Terms of Sale for more information.
Head over here if you want to learn more about the values and vision behind Panorama Cycles products.
We know you want to receive your order as quickly as possible! We will ship your package as soon as the order is confirmed, and we will ensure that the product you have ordered is carefully packaged to protect it during transport.
For all orders shipped outside of Canada: you are responsible for paying any customs duties/tariffs and applicable local taxes. These fees will be collected by the carrier upon delivery. For U.S. residents, an *estimate* of customs duties will be provided at checkout.
If your country is not listed at checkout, please contact us before
placing your order so we can offer you the best possible shipping rate.
Visit or contact one of our key partner in order to know if they currently have in stock the model and size that you are looking for.

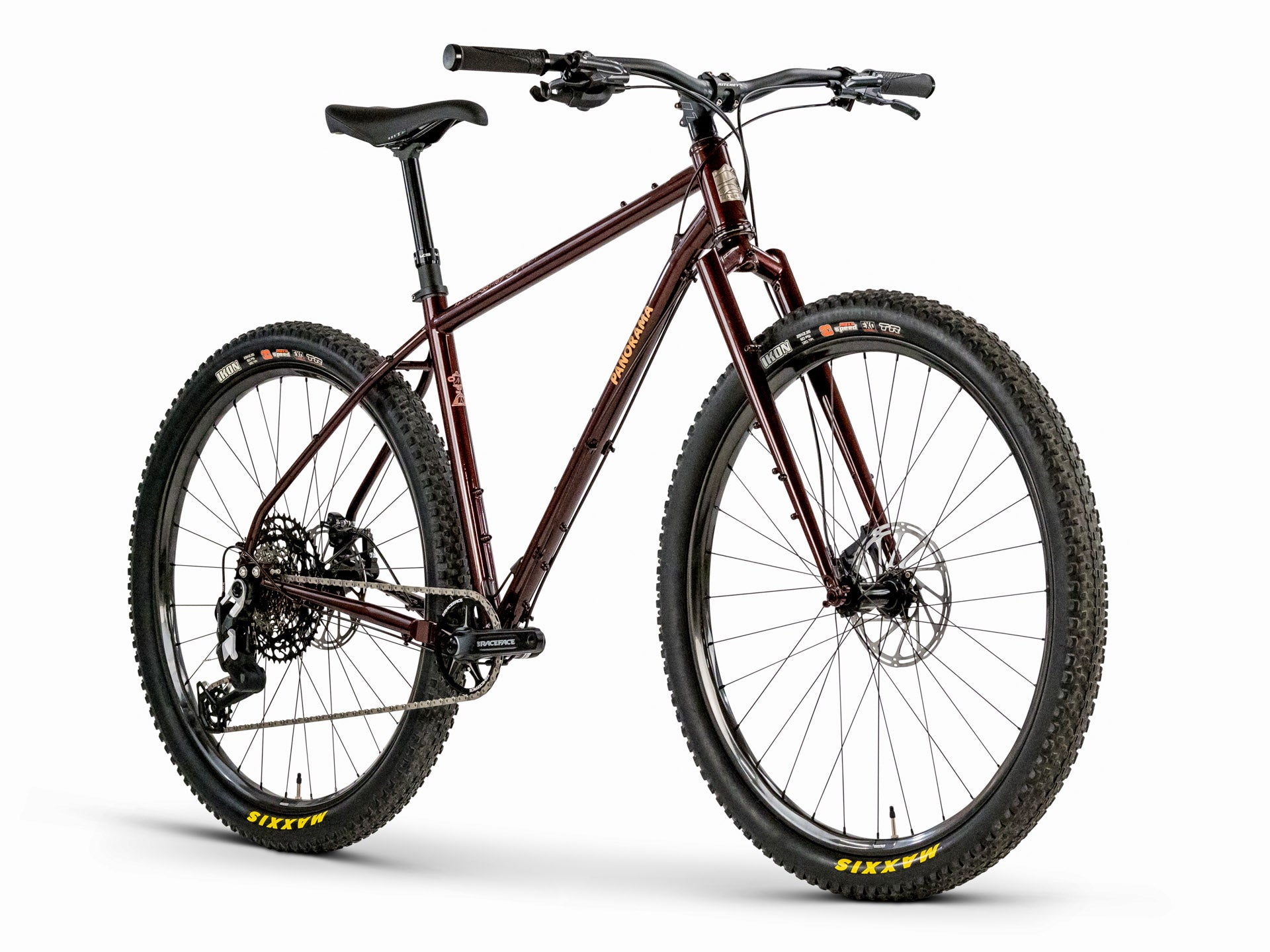

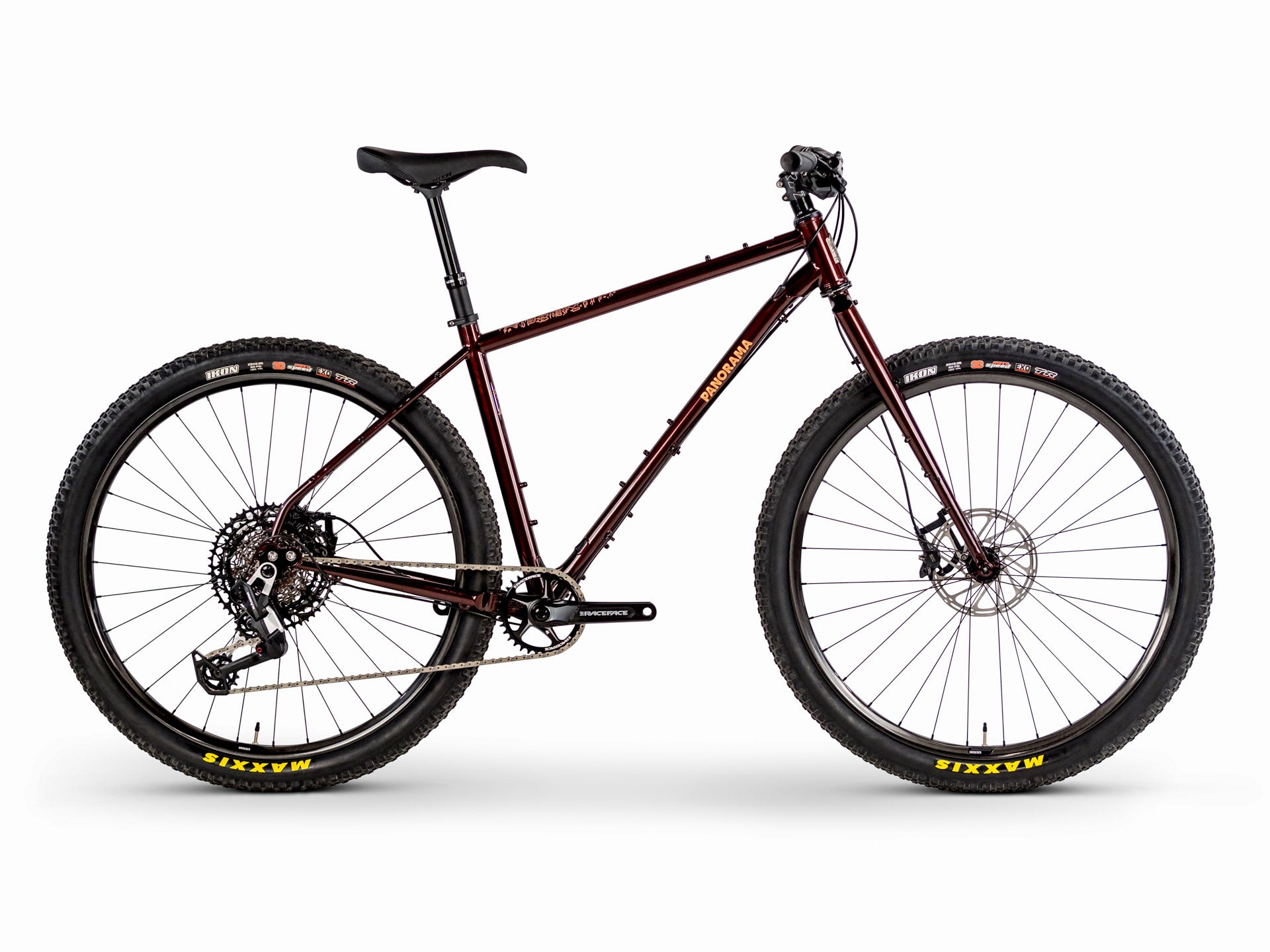

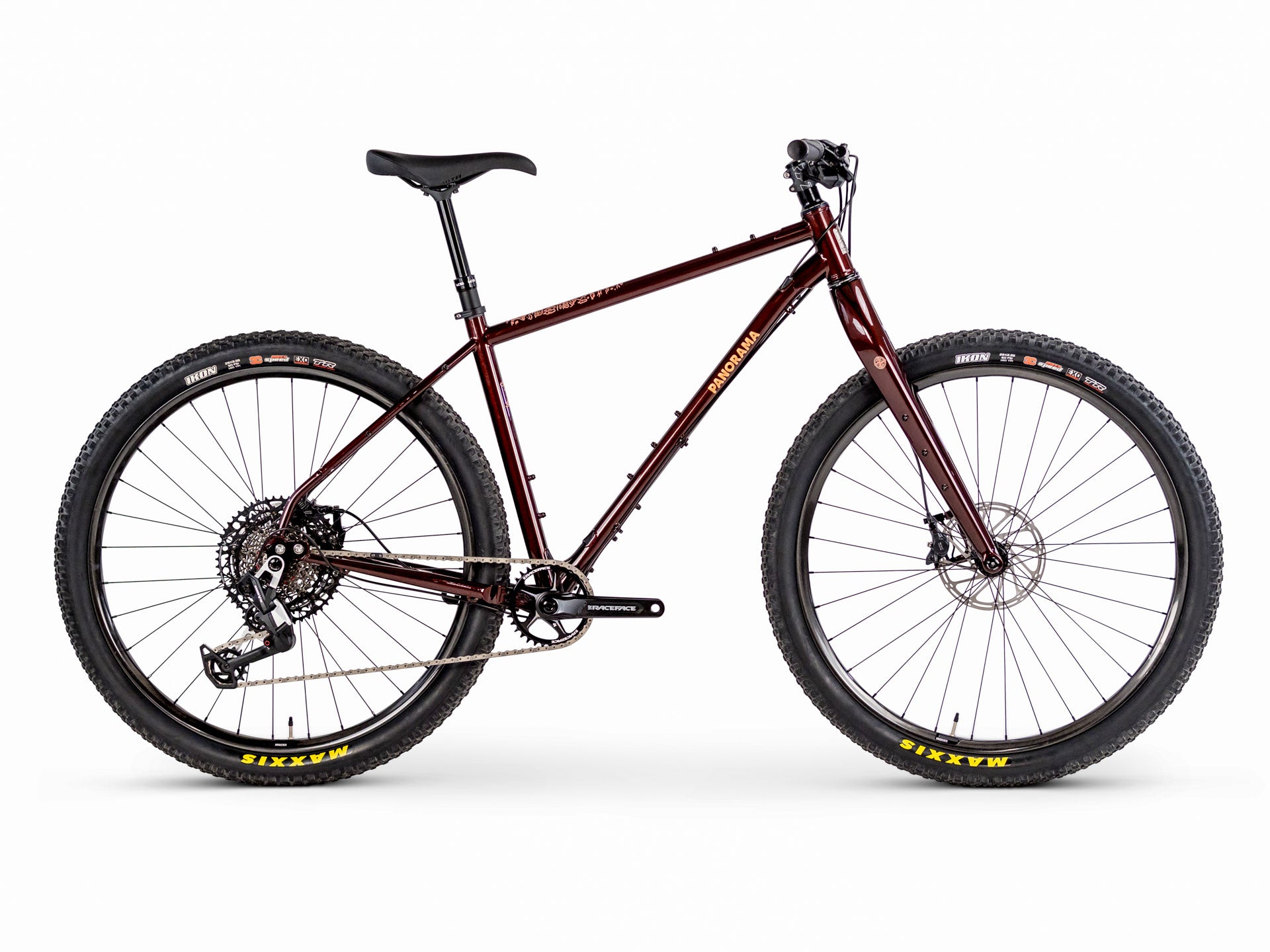

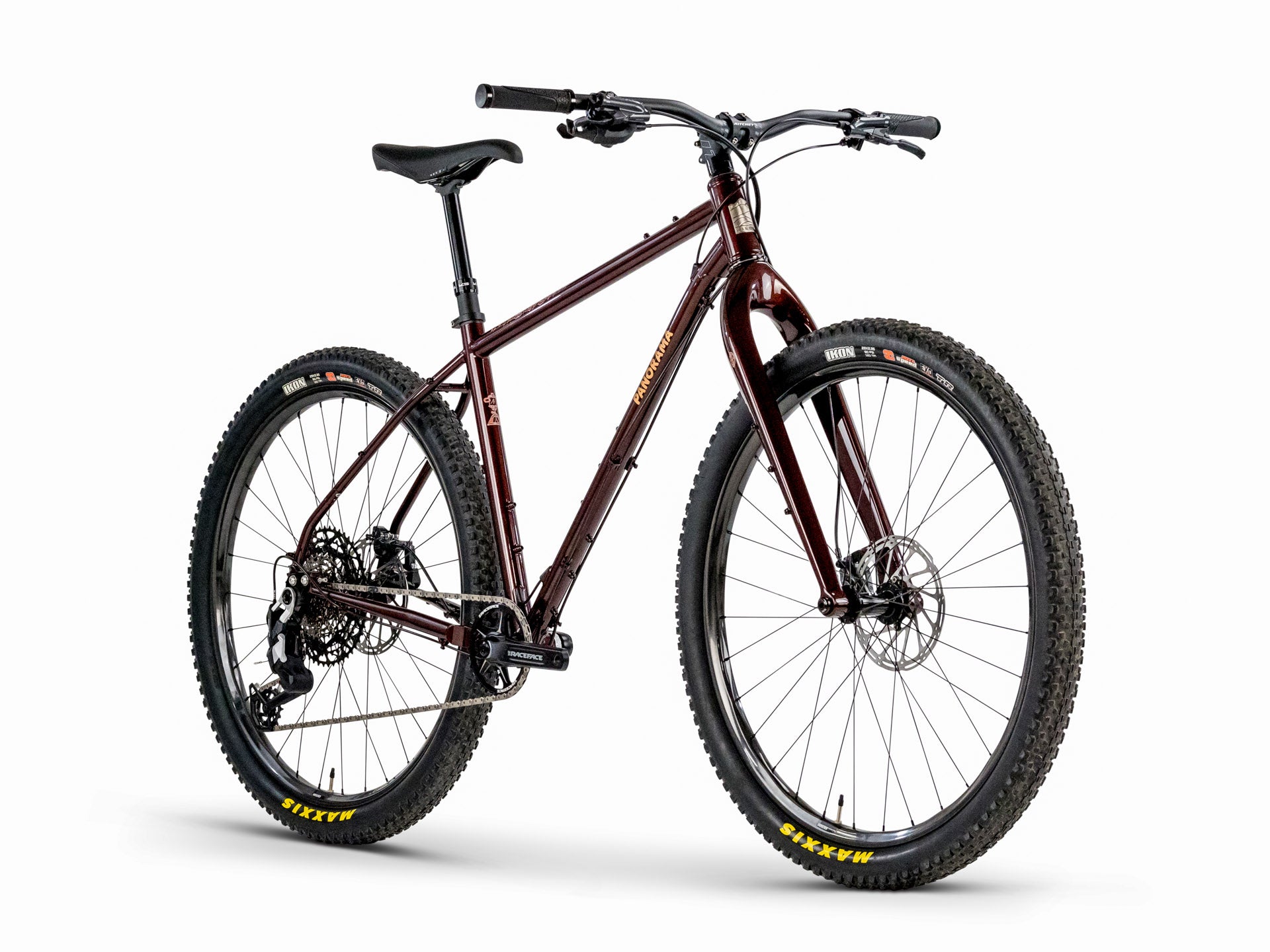

Panorama Taïga EXP 3
LONG DISTANCE OFF-ROAD GEOMETRY
The Taïga EXP 3 is developed for stability and comfort. Thanks to its carefully calibrated geometry, it ensures a natural position in both flat bar and drop bar configurations.
Main Features
REYNOLDS 725 TUBESET
Custom selection of Reynolds 725 steel tubing unique to each frame size. Tubes are butted in the right places to provide the comfort and enjoyment of riding a steel frame without the extra weight.
UDH / T-TYPE SLIDING DROPOUTS
Sliding dropouts compatible with SRAM T-Type transmission. UDH derailleur hanger for easy replacement.
SUSPENSION CORRECTED STEEL OR CARBON FORK
The Taïga EXP is available with either a steel or carbon fork, each designed with geometry adjusted to be compatible with 120 mm suspension.
INTERNAL ROUTING FOR DYNAMO HUB AND REAR LIGHT
The frame allows the rear light cable to be routed inside it, thanks to the entry and exit ports located on the downtube and on the non-drive side chainstay.
The fork also offers an internal passage, which is convenient for connecting a USB charger or hub dynamo-powered lighting.
RAISED BOTTLE CAGE MOUNTS ON THE SEAT TUBE
To allow the use of a dropper seatpost while still mounting a bottle cage on the seat tube, we moved the mounts to the outside of the tube rather than the inside.
Thanks to this tiny detail, the seatpost can be inserted to its full depth without being obstructed by rivets.
SEAT STAY SPLIT FOR BELT DRIVE
The Taïga EXP, in his flat bar configuration, is an excellent candidate for a Rohloff belt drive setup.
An integrated opening in the seat stay makes this type of drivetrain configuration fully possible.
REDESIGNED DROPOUTS
We redesigned the adjustable dropouts for three main reasons:
1. Increased rear triangle stiffness: the junction point with the seat stays has been moved closer to the wheel axle.
2. Improved durability: the adjustment screw has been upgraded from M3 to M4, making it stronger and easier to work with.
3. Refined design: we wanted to enhance the overall aesthetics of the rear end of the bike. We’re very proud of the result.
TIRE CLEARANCE
The CNC-machined yoke offers generous clearance for 29 x 2.6-inch tires with plenty of room left over for mud.
MULTIPLE MOUNTS
Ready to be equipped for a short or long bikepacking outing with its many mounts: 3 bottle mounts, cargo cages on the fork, top tube bag, rear rack (with mid-seat stay inserts) and mudguard.
Panorama Taïga EXP 3
Who's this bike for:
– You are into bikepacking and want a comfortable, stable bike for your off-road adventures.
– You travel long distances on relatively non-technical off-road trails.
– You're looking for a reliable and efficient bike for your ultra-distance bikepacking races.
Not exactly what you are looking for?
– Would you like this bike in a drop handlebar version? Take a look at this version of the Taïga EXP 3.
– Are you venturing onto more technical off-road trails? Take a look at the Taiga.
– You plan to load heavily using front and rear panniers and wish for maximum stability? Take a look at the Boreal.
– Prefer a bike with narrower tires for riding mostly gravel? Take a look at the Anticosti.
The story behind the illustration
GREAT NORTHERN BIKEPACKING ROUTE
The Great Northern Bikepacking Route crosses Canada on a mix of all types of backcountry roads and trails. The Taiga EXP was the bike of choice for Mat and Ali @trip.longer, who were among the first to complete this adventure in 2024.
The route of the GNBR and the highlights illustrating this epic journey have been added to Taiga EXP 3.
These illustrations created by Denis Carrier are part of Panorama Cycles’ commitment to do its part for the environment. Find out more now:
Specifications
All our bikes are assembled per order at our factory in Granby, Canada. The components we choose provide the best balance between reliability and weight.
Weight of complete medium bike: approx 27 lbs (varies depending on the options chosen).
You want to customize your bike by replacing a few parts? Send us your wish list and we will be pleased to answer your request.
Frame
SIZE-SPECIFIC BUTTED REYNOLDS 725 TUBESET
INTERNAL CABLE ROUTING FOR DROPPER SEAT POST
INTERNAL WIRE ROUTING FOR REAR LIGHT
SLIDING DROPOUTS – SINGLE SPEED / ROLHOFF COMPATIBLE
BELT DRIVE COMPATIBLE
UDH - T-TYPE TRANSMISSION COMPATIBLE
POST MOUNT BRAKE STD
REAR RACK AND FENDER MOUNT
MID SEAT STAY RACK MOUNTING POINT
TRIPLE WATER BOTTLE MOUNT UNDER AND ON TOP OF THE DOWNTUBE
RAISED WATER BOTTLE MOUNT ON SEAT TUBE (NOT INTERFERING WITH DROPPER POST)
GAS TANK MOUNT ON TOP OF TOP TUBE
ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION)
12MMX148MM BOOST REAR SPACING
73MM BSA BOTTOM BRACKET
HEADSET: TOP ZS44 LOWER EC44
DIA 34.9MM SEAT POST CLAMP
DIA 31.6MM SEAT POST
DIA 34.9MM FRONT DERAILLEUR CLAMP
MAXIMUM TIRE CLEARANCE: 29¨X2.6¨ or 27.5¨X2.8¨
SUSPENSION FORK COMPATIBLE (GEOMETRY CORRECTED TO 120MM TRAVEL FORK)
Fork
OPTION 1:
CUSTOM CR-MO 4130
15MMX110MM SPACING
TRIPLE CARGO CAGE MOUNTS
MOUNTS FOR LOW-RIDER AND NITTO/RIVENDALE-STYLE RACK
FENDER MOUNTS
INTERNAL CABLE ROUTING FOR DYNAMO HUB
STRAIGHT STEER TUBE 1-1/8¨
MAX TIRE CLEARANCE : 29X2.6¨
POST MOUNT BRAKE STD
OPTION 2:
HIGH STRENGTH CARBON
TOOLING/DESIGN: 100% PROPRIETARY PANORAMA CYCLES
15MMX110MM SPACING
TRIPLE CARGO CAGE MOUNTS
FENDER MOUNTS
INTERNAL CABLE ROUTING FOR DYNAMO HUB
TAPERED STEER TUBE 1-1/8¨ / 1-1/2¨
MAX TIRE CLEARANCE : 29X2.6¨
POST MOUNT BRAKE STD
Components
| T1: SHIMANO CUES 2X11 | T1: SHIMANO DEORE 1X12 | T3: SRAM E90 | T4: SRAM GX AXS | |
| Wheelset | OPTION 1: WTB STi30 / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK, HG OPTION 2: WE ARE ONE, WANDERER, INDUSTRY NINE 1/1 HUBS |
OPTION 1: WTB STi30 / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK, MICROSPLINE OPTION 2: WE ARE ONE, WANDERER, INDUSTRY NINE 1/1 HUBS |
OPTION 1: WTB STi30 / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK, HG OPTION 2: WE ARE ONE, WANDERER, INDUSTRY NINE 1/1 HUBS |
OPTION 1: WTB STi30 / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK, HG OPTION 2: WE ARE ONE, WANDERER, INDUSTRY NINE 1/1 HUBS |
| Tires | MAXXIS IKON, 29X2.35, 3C/EXO/TR, 60TPI | MAXXIS IKON, 29X2.35, 3C/EXO/TR, 60TPI | MAXXIS IKON, 29X2.35, 3C/EXO/TR, 60TPI | MAXXIS IKON, 29X2.35, 3C/EXO/TR, 60TPI |
| Crankset | SHIMANO CUES 4000, 22-36T, 170mm | RACE FACE AEFFECT, 34T SHI12 CINCH DM CHAINRING, 165mm | RACE FACE AEFFECT, 34T CINCH DM CHAINRING, 165mm | RACE FACE AEFFECT, 34T CINCH DM CHAINRING, 165mm |
| Bottom Bracket | SHIMANO BB-MT501 | RACE FACE TEAM BSA 24mm SPINDLE | RACE FACE TEAM BSA 24mm SPINDLE | RACE FACE TEAM BSA 24mm SPINDLE |
| Cassette | SHIMANO LG400, 11-45T, 11 SPEEDS | SHIMANO M6100-12, 10-51T, 12 SPEEDS | SRAM XS-1270, 10-52T | SRAM XS-1270 10-52T, 12s |
| Chain | SHIMANO LG500 LINKGLIDE | SHIMANO M6100, 12 SPEEDS | SRAM GX T-TYPE FLAT TOP | SRAM GX EAGLE T-TYPE FLATTOP |
| Derailleur | SHIMANO CUES 6000 | SHIMANO DEORE M6100 12s | SRAM EAGLE 90 T-TYPE | SRAM GX T-TYPE AXS |
| Shifter | SHIMANO CUES 8000 2X11 | SHIMANO DEORE M6100 12s | SRAM EAGLE 90 | SRAM AXS POD |
| Brakes | TRP EVO | TRP EVO | TRP EVO | TRP EVO |
| Rotors | TRP CENTERLOCK 180MM | TRP CENTERLOCK 180MM | TRP CENTERLOCK 180MM | TRP CENTERLOCK 180MM |
| Handlebar | RITCHEY MTN Comp 10D Rizer, 31.8x800mm, 20mm rise, 10D backswept | RITCHEY MTN Comp 10D Rizer, 31.8x800mm, 20mm rise, 10D backswept | RITCHEY MTN Comp 10D Rizer, 31.8x800mm, 20mm rise, 10D backswept | RITCHEY MTN Comp 10D Rizer, 31.8x800mm, 20mm rise, 10D backswept |
| Stem | OPTION 1: RITCHEY MTB trail, Alloy BBK 31.8X70mm OPTION 2: REDSHIFT SHOCKSTOP 6DEG |
OPTION 1: RITCHEY MTB trail, Alloy BBK 31.8X70mm OPTION 2: REDSHIFT SHOCKSTOP 6DEG |
OPTION 1: RITCHEY MTB trail, Alloy BBK 31.8X70mm OPTION 2: REDSHIFT SHOCKSTOP 6DEG |
OPTION 1: RITCHEY MTB trail, Alloy BBK 31.8X70mm OPTION 2: REDSHIFT SHOCKSTOP 6DEG |
| Headset | CANE CREEK 40-SERIES | CANE CREEK 40-SERIES | CANE CREEK 40-SERIES | CANE CREEK 40-SERIES |
| Seatpost | OPTION 1: KALLOY SP-3D2, 31.6mm X 350mm OPTION 2: KS RAGE-I DROPPER POST,125/150MM OPTION 3: REDSHIFT SHOCKSTOP ENDURANCE |
OPTION 1: KALLOY SP-3D2, 31.6mm X 350mm OPTION 2: KS RAGE-I DROPPER POST,125/150MM OPTION 3: REDSHIFT SHOCKSTOP ENDURANCE |
OPTION 1: KALLOY SP-3D2, 31.6mm X 350mm OPTION 2: KS RAGE-I DROPPER POST,125/150MM OPTION 3: REDSHIFT SHOCKSTOP ENDURANCE |
OPTION 1: KALLOY SP-3D2, 31.6mm X 350mm OPTION 2: KS RAGE-I DROPPER POST,125/150MM OPTION 3: REDSHIFT SHOCKSTOP ENDURANCE |
| Saddle | WTB PURE | WTB PURE | WTB PURE | WTB PURE |
| Pedals | Not included | Not included | Not included | Not included |
Geometry
Riding with a well-fitted bike is key to comfort, performance and fun. Contact us for any technical questions you may have.
Please refer to the chart below to determine the right frame size for you. If you are between two sizes:
- Consider choosing the larger frame size if you have proportionally longer legs and a shorter torso.
- Inversely, Consider choosing the smaller frame size if you have proportionally longer torso and a shorter legs.
In both cases, stem length adjustments are available upon request.
geometry chart
| SMALL | MEDIUM | MEDIUM-LARGE | LARGE | |
|---|---|---|---|---|
| APPROXIMATIVE CYCLIST HEIGHT | 5’3’’ – 5’7’’ | 5’6’’ – 5’10’’ | 5’10’’ – 6’1’’ | 6’0’’-6’3’’ |
| STANDOVER HEIGHT | 760mm | 790mm | 817mm | 850mm |
| HEAD TUBE ANGLE | 67.5° | 67.5° | 67.5° | 67.5° |
| SEAT TUBE ANGLE | 75° | 75° | 75° | 75° |
| STACK | 605mm | 620mm | 635mm | 650 |
| REACH | 398mm | 419mm | 430mm |
451mm |
| HEAD TUBE LENGTH | 85mm | 100mm | 117mm | 133mm |
| SEAT TUBE LENGTH | 400mm | 440mm | 475mm | 520mm |
| HORIZONTAL TOP TUBE LENGTH | 560mm | 585mm | 600mm | 625mm |
| CHAINSTAY LENGTH | 445-460mm | 445-460mm | 445-460mm | 445-460mm |
| BB DROP | 70mm | 70mm | 70mm | 70mm |
| FORK RAKE/OFFSET | 44mm | 44mm | 44mm | 44mm |
| WHEELBASE | 1107mm | 1134mm | 1151mm | 1178mm |
| TRAIL | 99mm | 99mm | 99mm | 99mm |
| STEM LENGTH | 45mm | 45mm | 45mm | 45mm |
