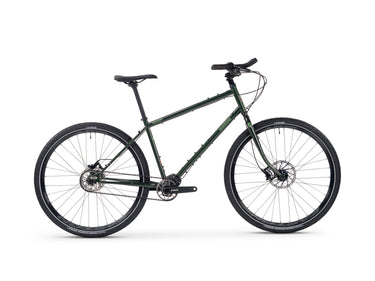

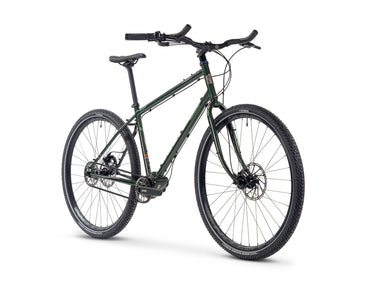

Boreal Pinion
***Presale now open. To make a 50% reservation deposit, use the promo code BOREALPINIONRAD on the checkout page. Delivery starting end of April.
After conclusive tests on the 2500+km Baja Divide in Mexico and during the TransBoreale expedition (complete winter crossing of Quebec from south to north), the Boreal Pinion bike is offered in a limited series.
The Boreal Pinion is designed to carry its rider with confidence on journeys and expeditions around the world. The frame and fork are robust, and the components are extremely reliable and low-maintenance.

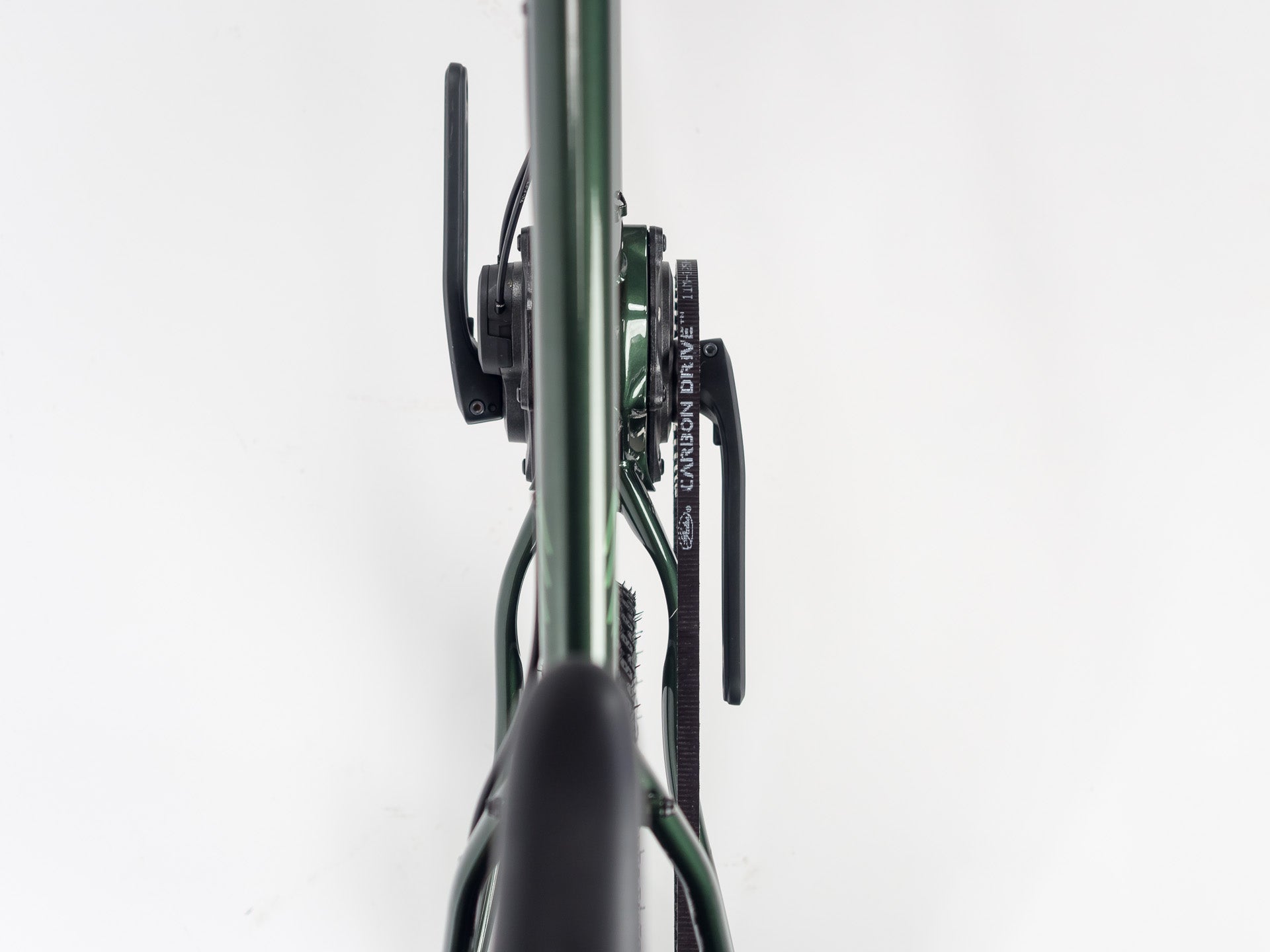

The highlight of the Boreal Pinion is the Pinion drivetrain. Combined with the Gates carbon belt, it is virtually maintenance-free and extremely durable. The performance of the Pinion internal gear system is unsurpassed, while the wide range of gear ratios is exceedingly large (600% for the C1.12 model – other models available on request) and each gear is evenly spaced.
For half-road/half-off-road touring, 29×2.0 (700×50 equivalent) tires will provide an optimum ride. For off-road use, 27.5″ tires of equivalent diameter, i.e. 27.5×2.6, are the appropriate choice. The two 32-spoke wheel options (for greater durability) are offered with the purchase of the complete bike. In both options, no lack of mud clearance while the frame and fork can accommodate 29×2.8 tires.
*The frame/fork+Pinion set comes complete with Pinion C1.12 drivetrain, forged aluminum crank arms and shifter. Wheel axles, installed headset, seatpost collar and frame protectors are also included.
Pickup available at Panorama Cycles
Usually ready in 2-4 days
Pickup Availability
-
Panorama Cycles
Pickup available, usually ready in 2-4 days15a-231 Rue Saint Charles Sud
Granby QC J2G 9M6
Canada4387630076
Product information
We're proud to offer products for which every detail has been thought through and validated.
We offer a warranty that covers the owner of a Panorama bike for life. First of all, should a manufacturing issue arise, this defect will typically surface quickly in the life of the bike. That's why we offer a full 5-year warranty against manufacturing defects. Then, if an accident, fall or impact causes damage to the frame, you'll be covered by our lifetime crash replacement policy. Simply return the frame to us, and we'll assess whether repair is possible or replacement is necessary, at the lowest possible cost.
Return the bike after 10 days of testing if anything is not up to your expectations. Your satisfaction (and especially your fun outdoor) is at the top of our priorities. See the Terms of Sale for more information.
Head over here if you want to learn more about the values and vision behind Panorama Cycles products.
We know you want your order as soon as possible! We will ship your box once the order is confirmed, and be sure the product you ordered will be carefully wrapped to protect it during shipment.
We use flat rates for all of Canada and the United States. This rate will be displayed at the time of payment for your purchase. Custom duties are included in the purchase price for US shipment.
***As of March 4, 2025, due to the tariffs situation imposed by the Trump administration, the customer is responsible for the import charges (Duties, Customs tariffs, and sales taxes). The carrier will collect the charges upon delivery to you.***
For international purchases, please contact us prior to placing your order so that we can send you the best possible shipping rate. The prices varies quite a lot depending of the region. for complete bike, the cheapest way to ship the bike in parts (not assembled) in 2 boxes.
As an example, here are some ball-park rates for shipping to Europe (again please contact to validate the exact rate to the final destination):
Frameset: 200-350$CAD
Complete bike in parts: 450-700$CAD
Complete bike assembled: 700-950$CAD
Visit or contact one of our key partner in order to know if they currently have in stock the model and size that you are looking for.
Panorama Boreal Pinion
ALL TERRAIN TOURING GEOMETRY
The combined 68deg head angle and 470-485mm chainstays give the Boreal a large wheelbase that inspires confidence when the bike is loaded.
Steering remains precise for navigating difficult terrain at low/medium speed, thanks to the 62mm fork offset (mechanical trail of 79mm).
Main Features

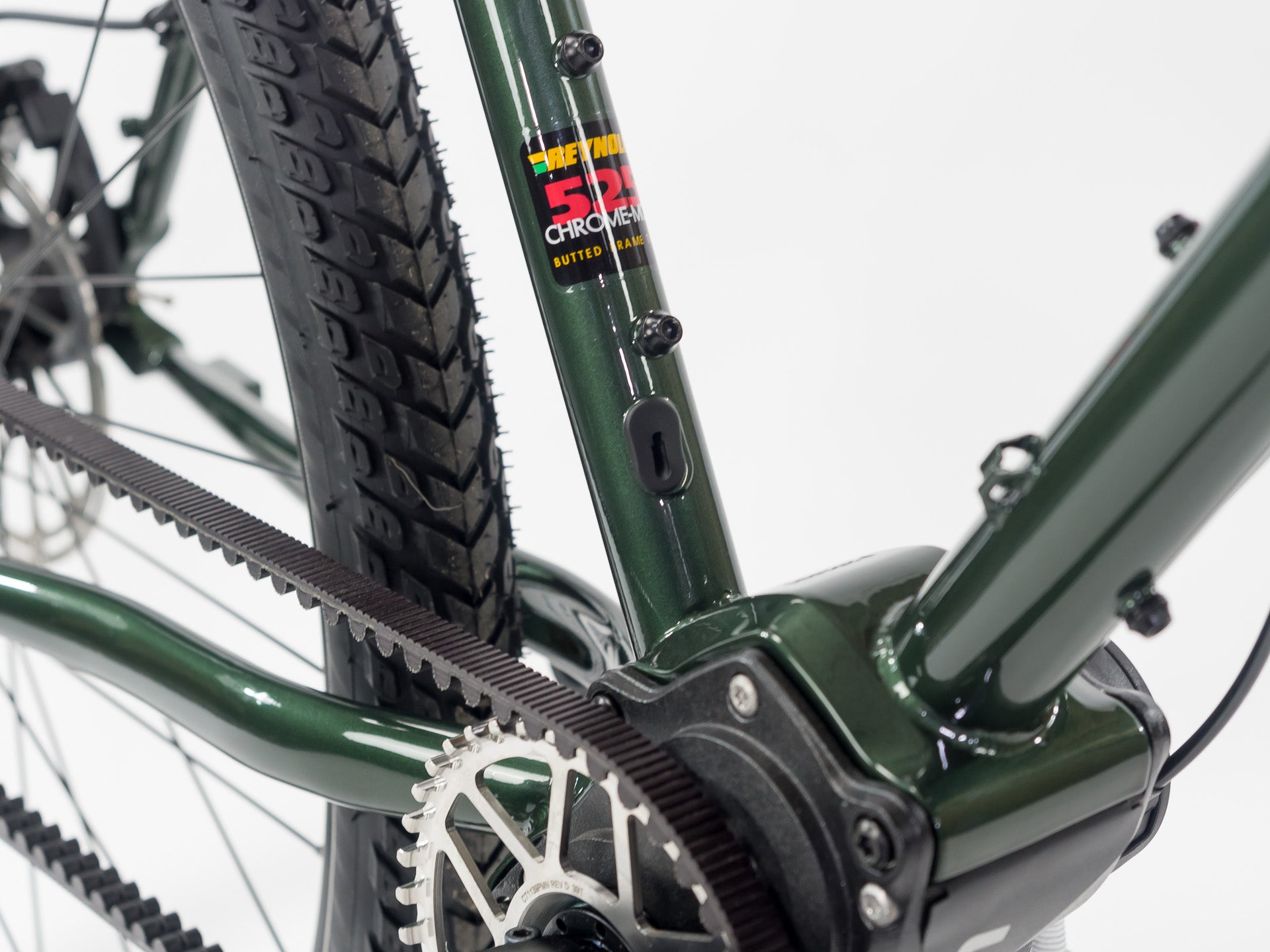

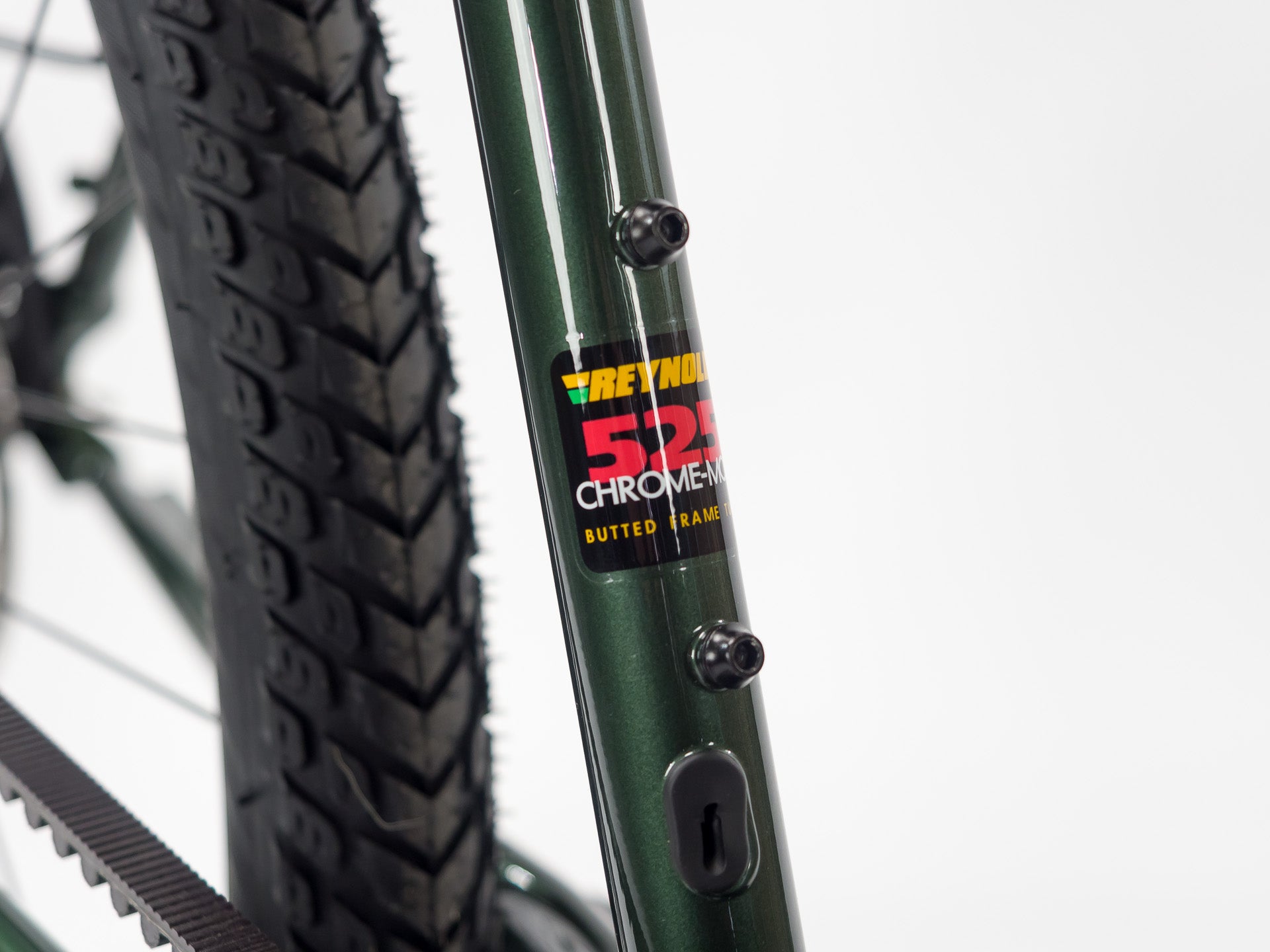

REYNOLDS 525 TUBESET
Custom selection of Reynolds 525 steel tubes used with reinforcements. Extremely robust and durable, perfectly suited to a heavily loaded bike.

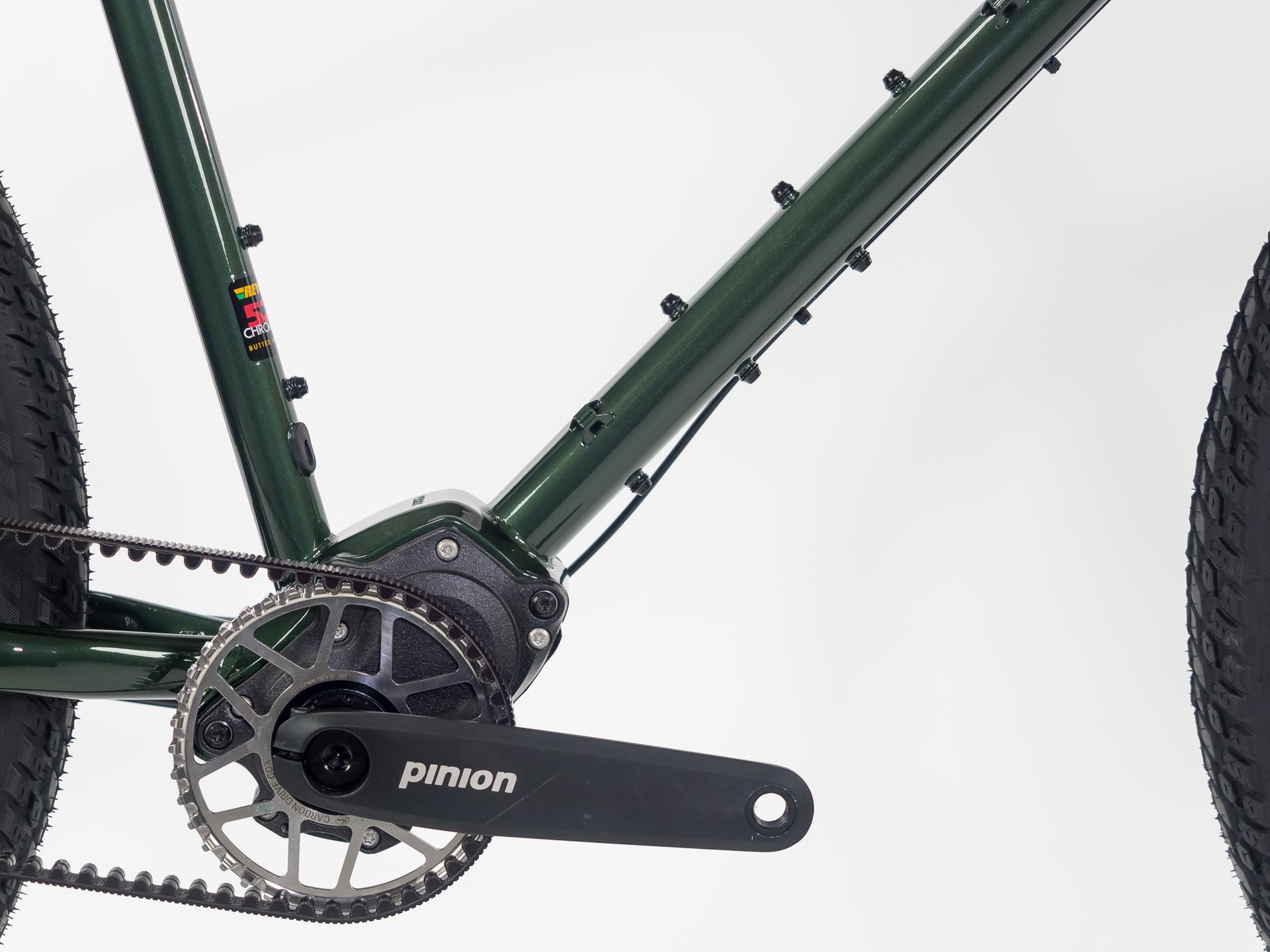

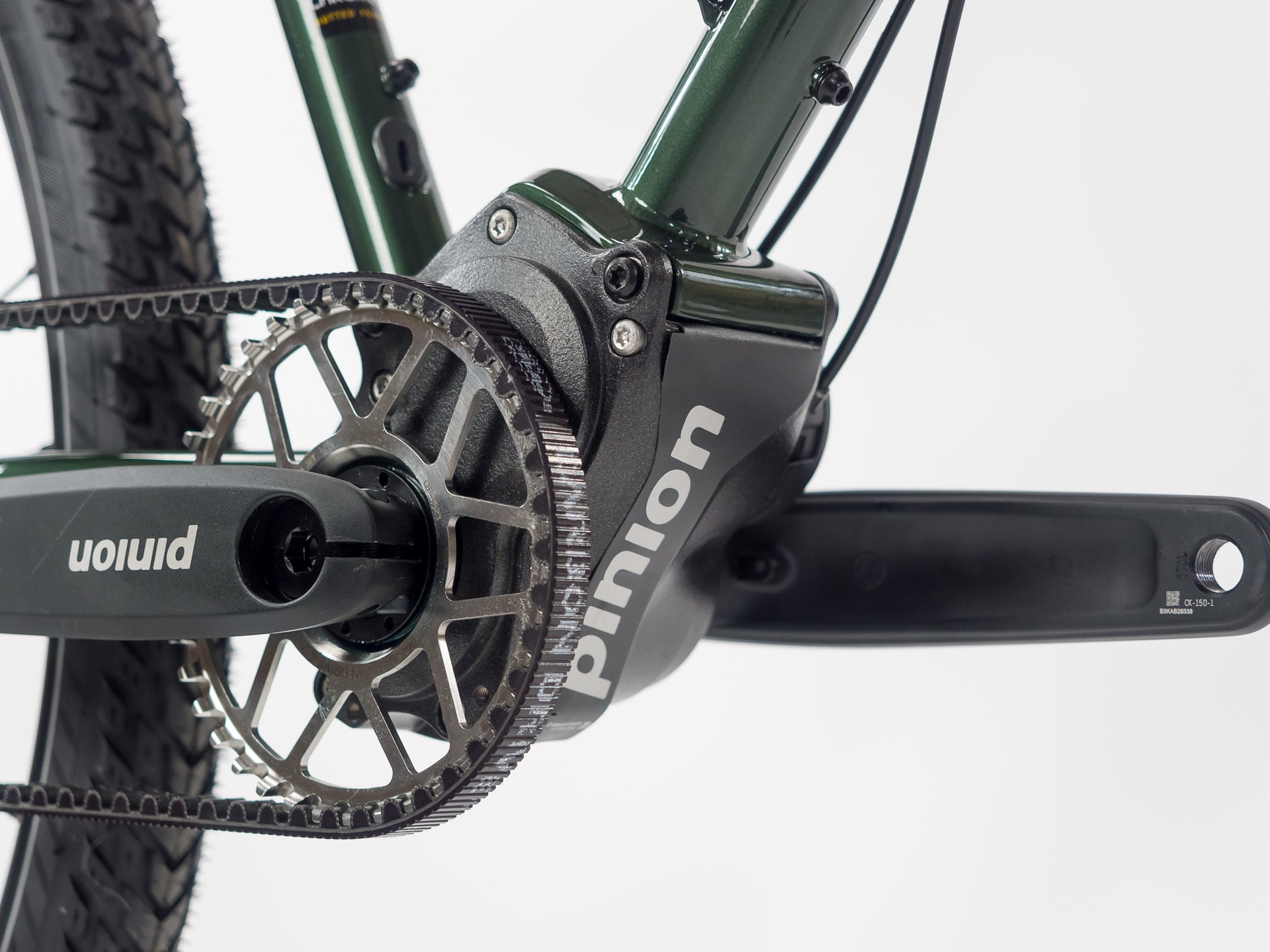

PINION TRANSMISSION
The Pinion drivetrain offers an extremely robust system requiring little maintenance or lubrication compared to a derailleur drivetrain. The speed range is 600% (vs. 510% for a Shimano mountain transmission) and gears are evenly spaced.
WHEELSET/TIRES COMPATIBILITY
Ready for anything with maximized mud clearance (29×2.8).
Choose fast 29×2” (700×50 equivalent) tires for more rolling roads, or go for wide tires with an equivalent 27.5″ diameter, i.e. 27.5×2.6″. The latter is ideal for off-road adventures.
MULTIPLE MOUNTING POINTS
Triple mounts on the downtube, double mounts on the seat tube, top tube bag, cargo cage mounts on the fork, front and rear luggage rack and mudguards.
INTERNAL CABLE ROUTING FOR DYNAMO
The fork is designed for use with a dynamo hub. There’s also a mount on the front of the fork for attaching a light.
INTEGRATED KICKSTAND SUPPORT
A kickstand support according to the KSA-18 standard is integrated into the frame to facilitate loading and unloading of the bike.
INTERNAL CABLE ROUTING FOR DROPPER POST
Seat tube opening in order to accommodate internal cable routing for an adjustable seat post.

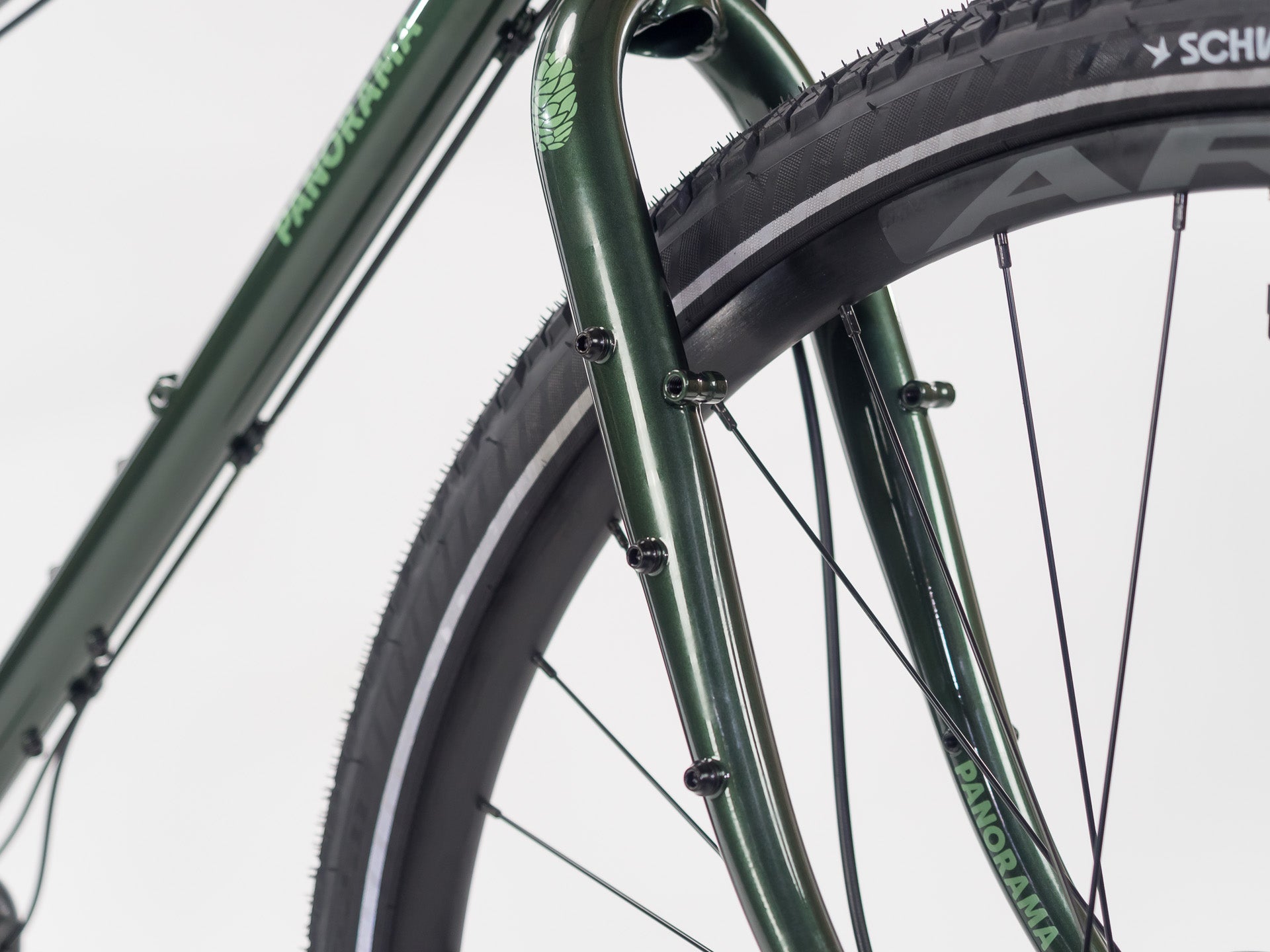

TOURING-SPECIFIC CR-MO FORK
Fork designed with a 62mm offset, for a natural steering/riding feel when the bike is heavily front-loaded.
PANORAMA BOREAL PINION
Who's this bike for:
- Expeditions/long-distance bike trips appeal to you.
- You want a bike that’s comfortable, ready for any type of terrain, and offers outstanding reliability/durability.
Not exactly what you are looking for?
Interested in this bike but would prefer a classic drivetrain or a Rohloff hub? Take a look at the Boreal.
The story behind the illustration

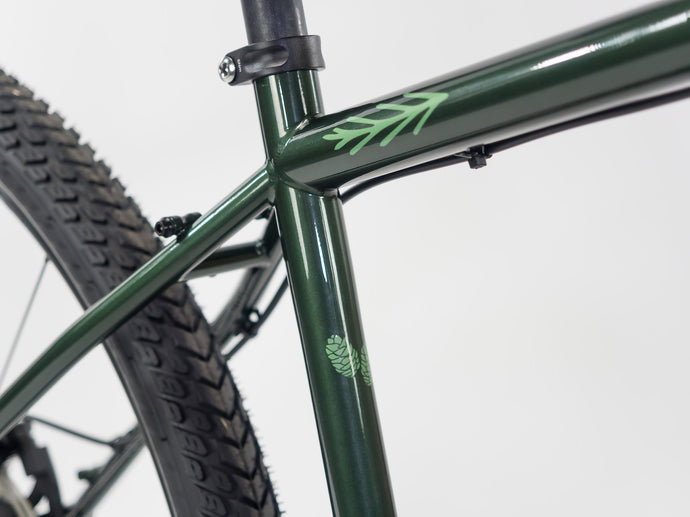

FRAME ILLUSTRATION: THE BLACK SPRUCE
Black spruce is found throughout the boreal region of North America. Illustration created by Trevor Browne.
This illustration is part of Panorama Cycles’ commitment to do its part for the environment. Find out more now:
Specifications
All our bikes are assembled per order at our factory in Granby, Canada. The components we choose provide the best balance between reliability and weight.
Weight of the frameset and Pinion gearbox: +/- 17lbs.
Weight of complete bike: approx. +/- 34lbs
You want to customize your bike by replacing a few parts? Send us your wish list and we will be pleased to answer your request.
Frame
REYNOLDS 525 FRAME WITH REINFORCEMENTS.
INTERNAL CABLE ROUTING DROPPER SEATPOST

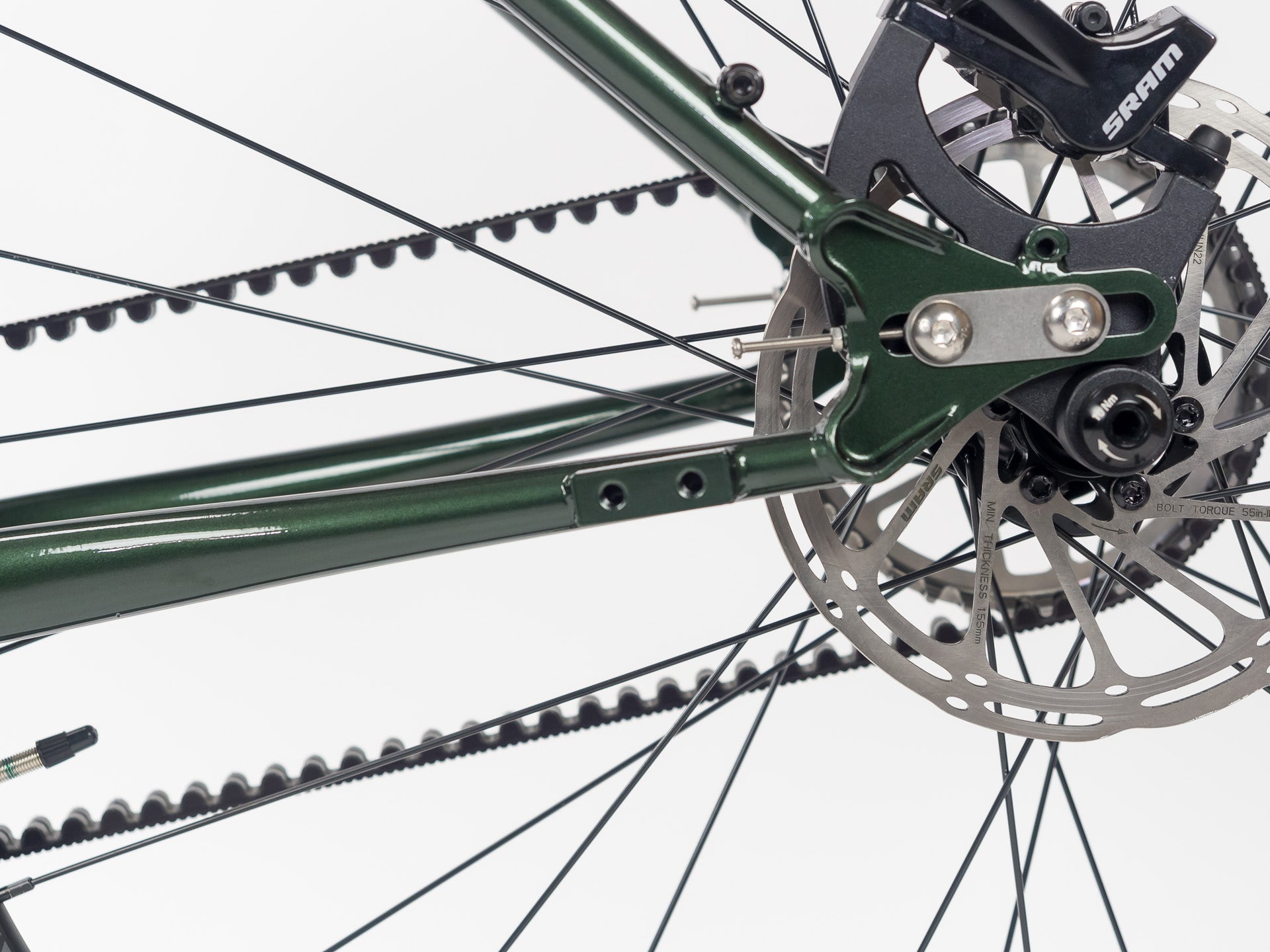

ADJUSTABLE REAR WHEEL DROPOUT
BELT DRIVE COMPATIBLE
POST-MOUNT BRAKE STD
REAR RACK AND FENDER MOUNT
TRIPLE WATER BOTTLE MOUNT UNDER AND ON TOP OF THE DOWNTUBE
WATER BOTTLE MOUNT ON SEAT TUBE
GAS TANK BAG MOUNT ON TOP TUBE
ELECTRODEPOSITION SURFACE TREATMENT (CORROSION PROTECTION)
12MMX148MM BOOST REAR AXLE
73mm BSA BOTTOM BRACKET
STEERING TUBE 1-1/8¨
HEADSET: EC34 TOP AND BOTTOM
SEATPOST COLLAR DIA 29.8MM
SEATPOST DIA 27.2MM
MAX TIRE CLEARANCE: 29¨X2.8¨, 27.5¨X3¨
COLOR: METALLIC FOREST GREEN
Fork
CUSTOM CR-MO 4130

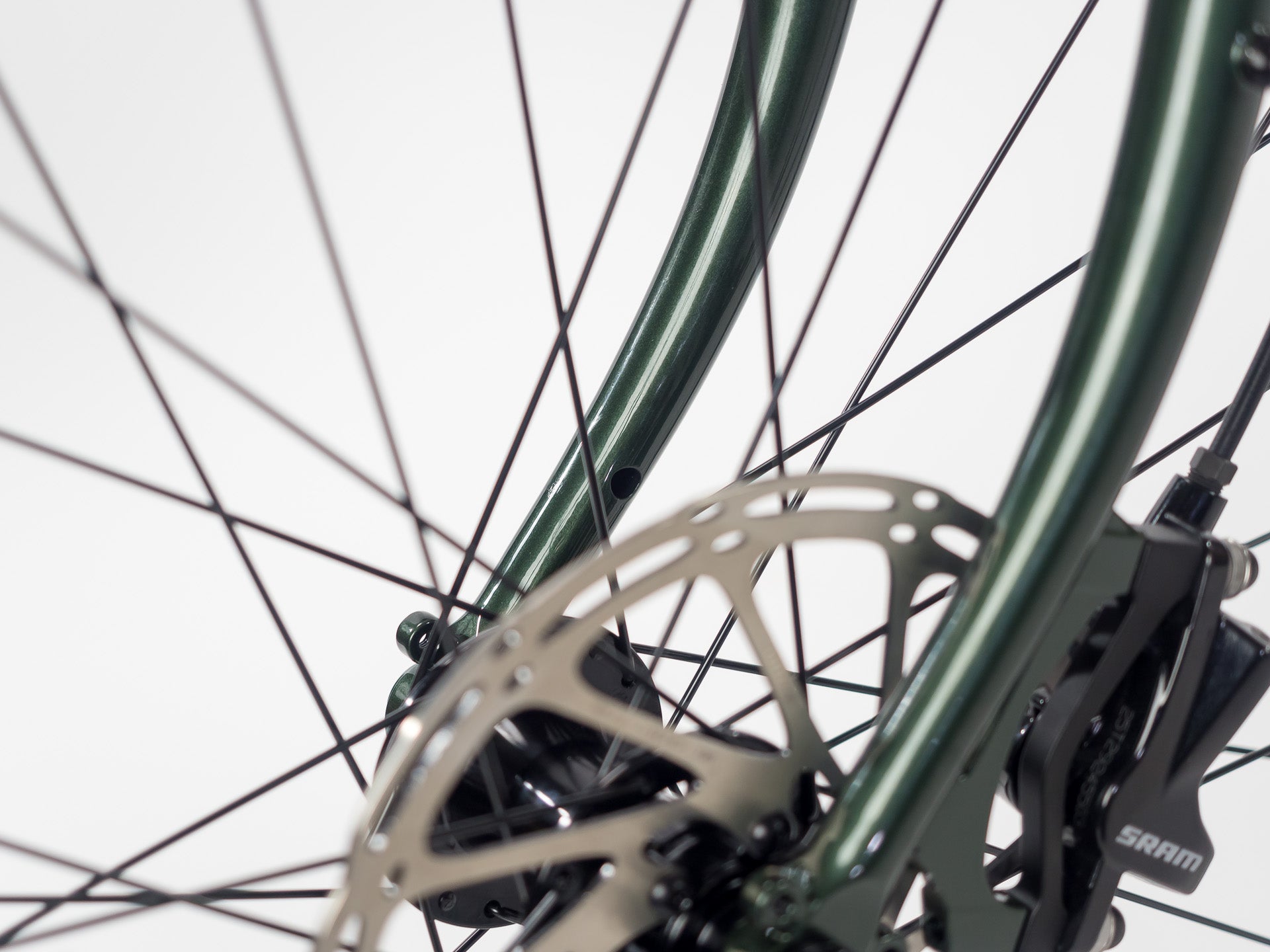

POST MOUNT BRAKE STD
RACK MOUNTS
FENDER MOUNTS
TRIPLE CARGO CAGE MOUNTS
MOUNTS FOR LOW-RIDER AND NITTO/RIVENDALE-STYLE RACK
DYNAMO HUB COMPATIBLE
15MMX110MM AXLE
STRAIGHT STEER TUBE 1-1/8¨
MAX TIRE CLEARANCE: 29X2.8¨, 27.5¨X3¨
COLOR: METALLIC FOREST GREEN
Components
| Wheels |
OPTION W1-1: WTB STi30 27.5¨ / SHIMANO TC500 (FRONT) / TC600 (REAR), 32 HOLES, CENTERLOCK OPTION W1-2: INDUSTRY NINE BACKCOUNTRY 360 27.5¨ / HYDRA HUBS / 6 BOLTS, 32 HOLES OPTION W2-1: EASTON AR 25 OFFSET / PANORAMA SPEC SEALED HUBS, STAR RATCHET, 32 HOLES, 6 BOLTS OPTION W2-2: VELOCITY CLIFFHANGER 29¨ RIMS / INDUSTRY NINE HYDRA HUBS / 6 BOLTS, 32 HOLES, HG
|
| Tires | OPTION W1: MAXXIS REKON, 27.5X2.6, EXO/TR, 60TPI, BLACK
|
| Drivetrain | PINION C1.12 (other models available on special request) |
| Crank arms | PINION, FORGED ALUMINUM 170MM |
| Rear Sprocket | GATES CDX 39T STAINLESS |
| Front Sprocket | GATES CDX 39T STAINLESS |
| Belt | GATES CDX |
| Shifter | PINION DS2.12 |
| Brakes | OPTION 1: SRAM LEVEL T OPTION 2: SHIMANO XT 4 PISTONS M8120 |
| Rotors | SRAM CENTERLINE, OR SHIMANO RT-70, 180MM FRONT, 160MM REAR, 6 BOLTS |
| Handlebars | VELO ORANGE CRAZY BARS |
| Stem | PROMAX FA-283, 60MM, 7DEG |
| Headset | CANE CREEK 40-SERIES |
| Seatpost | OPTION 1: KALLOY SP-3D2, 27.2mm X400mm OPTION 2: REDSHIFT SHOCKSTOP ENDURANCE |
| Saddle | WTB VOLT |
| Pedals | Not included |
Geometry
Riding with a well-fitted bike is key to comfort, performance and fun! Contact us for any technical questions you may have.
geometry chart
| SMALL | MEDIUM | LARGE | |
|---|---|---|---|
| APPROXIMATIVE CYCLIST HEIGHT | 5’4’’ – 5’8’’ | 5’8’’ – 5’11’’ | 5’11’’ – 6’3’’ |
| STANDOVER HEIGHT | 730mm | 750mm | 780mm |
| HEAD TUBE ANGLE | 68° | 68° | 68° |
| SEAT TUBE ANGLE | 73.5° | 73.5° | 73.5° |
| STACK | 604mm | 623mm | 642mm |
| REACH | 416mm | 421mm | 445mm |
| HEAD TUBE LENGTH | 150mm | 170mm | 190mm |
| SEAT TUBE LENGTH | 440mm | 460mm | 490mm |
| HORIZONTAL TOP TUBE LENGTH | 595mm | 605mm | 635mm |
| CHAINSTAY LENGTH | 470-485mm | 470-485mm | 470-485mm |
| BB DROP | 65mm | 65mm | 65mm |
| FORK RAKE/OFFSET | 62mm | 62mm | 62mm |
| WHEELBASE | 1165mm | 1178mm | 1210mm |
| TRAIL | 79mm | 79mm | 79mm |
| STEM LENGTH | 60mm | 60mm | 60mm |
On The Media
Part of the ”Best Pinion Bikepacking Bikes & Touring Bikes in North America” list.
”Panorama has paid close attention to the Boreal’s design, giving it a slack head tube angle and notably a long fork offset to ensure maximum ride stability while keeping the steering responsive. The long rear chainstay length further increases stability – especially when climbing – as your front wheel can remain planted to the ground even on steep pinches.”
”This bike is designed with the world traveler in mind. The bike boast a robust design, characterized by a sturdy frame, fork and components that require minimal maintenance, ensuring reliability on any kind of terrain”
”We’ve been anxiously awaiting the official launch of Panorama Cycles’ first Pinion-equipped bike”
”It is virtually maintenance-free and extremely durable”
high quality assembly
How to unbox your new bike
If you live too far from one of our certified dealer, we will gladly ship the bike to your door. Each bike is completely assembled and tuned prior to be carefully packaged.
